double shaft shredder, shredder machine , plastic shredder, waste materials shredder, twin shafts shredder

  •

    Double shaft shredder usages and features



    Double shaft shredder is mainly used to shred and recycle various plastics such as used household appliance casings, plastic packaging barrels, and plastic baskets. , pallets, large rolls of film, large bundles of woven bags, etc., paper, fiber, wood, solid waste, rubber tires, leather, wood, etc.



    Features of double shaft shredder

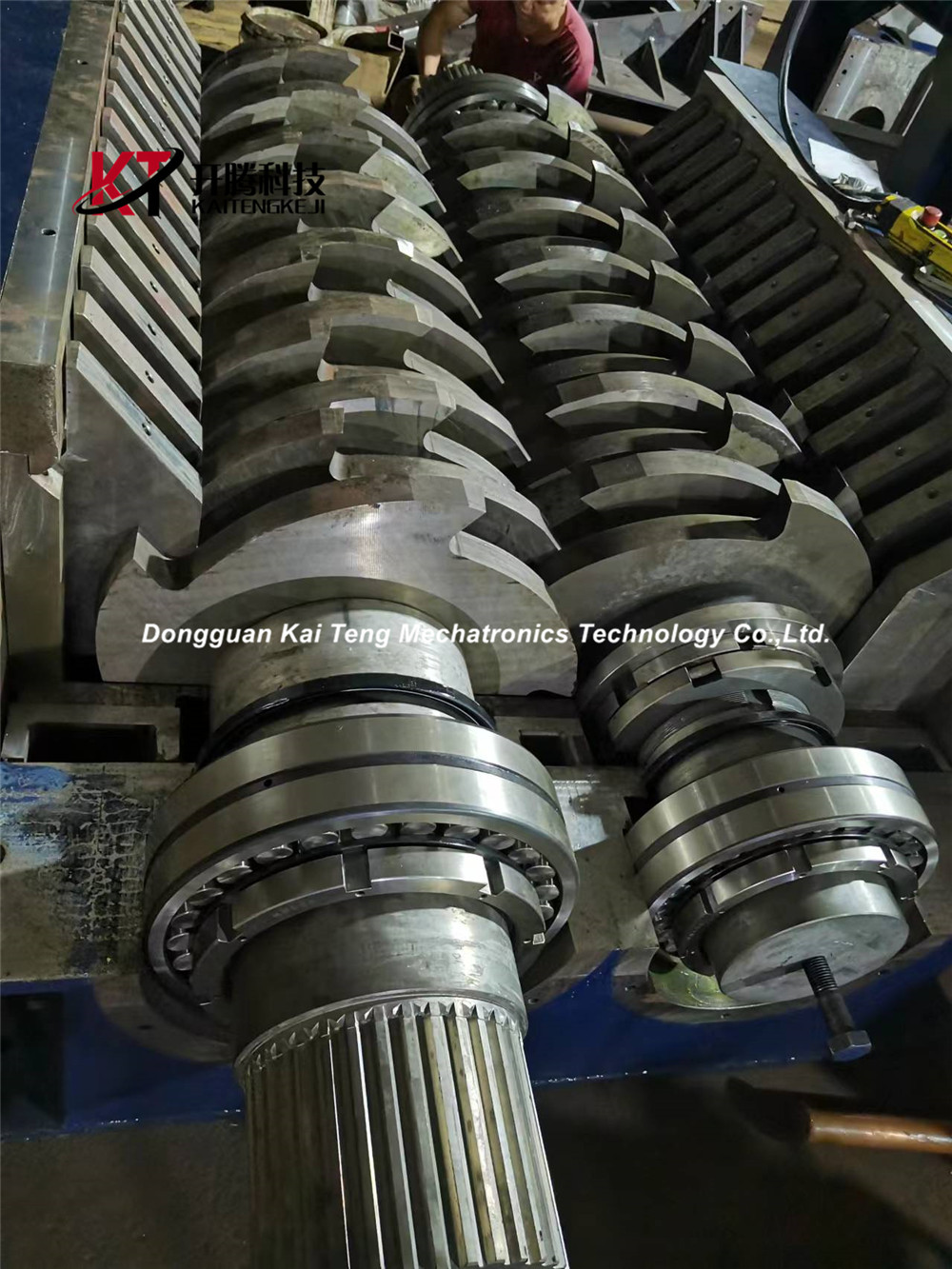

    1. The unique rotary knife is designed and processed in terms of thickness, shape, arrangement sequence, making it has strong shearing force, and it can shred materials with high efficiency.

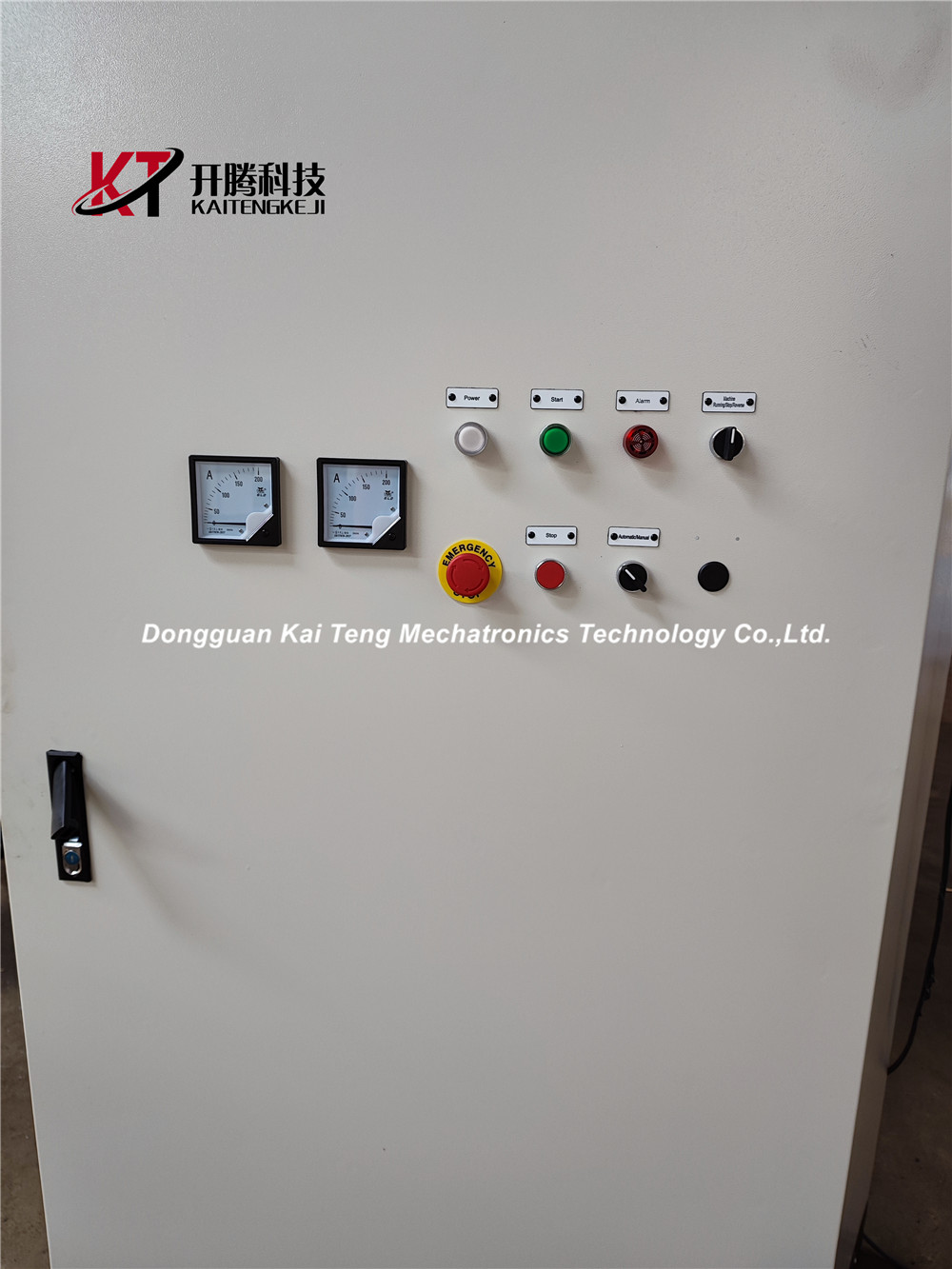

    2 PLC control, when material is overloaded, it can automatically forward and reverse operation and shutdown functions to protect the shredder and ensure safe use.

    型号Model

    JDHZ600

    JDHZ800

    JDHZ1000

    JDHZ1200

    JDHZ1500

    电机Motor power

    HP

    10+10

    20+20

    30+30

    40+40

    60+60

    撕碎室Shredding chamber

    MM

    600*450

    800*600

    1000*600

    1200*850

    1500*850

    转子Rotor diameter

    MM

    Φ220

    Φ290

    Φ290

    Φ450

    Φ450

    主轴转速Spindle speed

    R/min

    15

    15

    15

    12

    12

    动刀Rotary cutter

    PCS

    100

    100

    140

    220

    300

    定刀Stationary cutter

    PCS

    20

    20

    20

    24

    28

    刀体厚度Cutter thickness

    MM

    30

    40

    50

    50

    50

    外形Outline dimensions

    CM

    150*80*170

    260*100*200

    280*180*200

    440*180*280

    440*180*280

    重量 weight

    KG

    2000

    4000

    5000

    10000

    12000
