2000KG to 5000 KG plastic mixer with heating,horizontal blender mixer, power mixing machine
-
Applications of Industrial Plastic Mixer,Dry Powder Horizontal Ribbon Mixer, Horizontal Mixing Machine
1.Used for blending large amount of plastic particle, powder, new and old material, additive, color mixer etc.. Single barrel type has the function of mixing; double barrel type also has the heating function except mixing. It usually used in large capacity of plastic dyeing granulation, plastic modification, recycling of reworked material , PVC, TPR, TPE, PP, PE and other plastic particle , powder as well as chemical powder mixing and desiccation,. such as: calcium carbonate, barium sulfate, talcum powder, flame retardant, titanium dioxide, PVC powder, additives, ceramic frit, etc..
2.Double barrel type with oil heating up; temperature can reach 50 to 150 degrees with the highest to be 300 degrees.
3.Automatic screw feeder can be added to this machine, making operation more convenient.

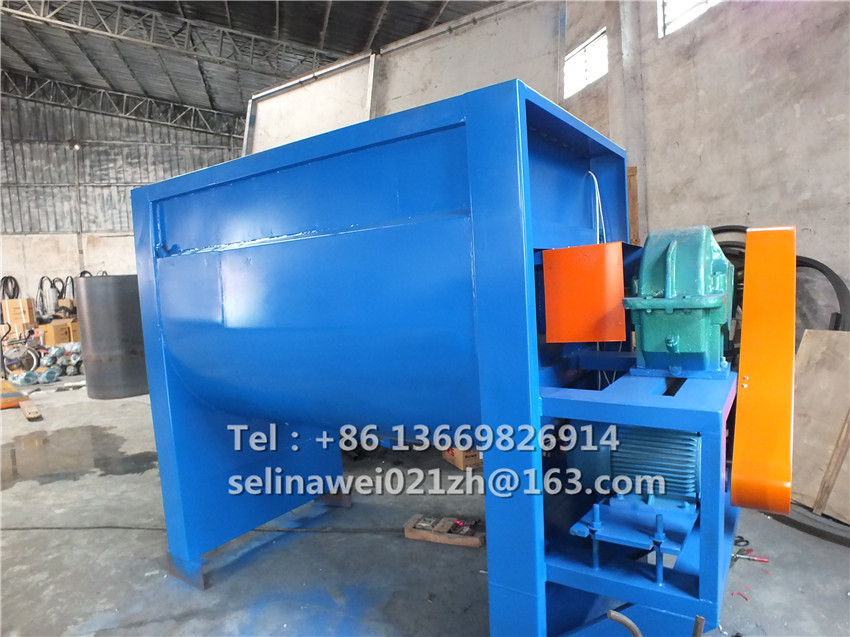

Descriptions of Horizontal mixer
1.The inner wall of the machine are made of imported stainless steel, with the advantages of smooth, easy to clean, acid and alkali resistance, durable, no dead ends and no pollution.
2.Adopting copper motor, famous brand cycloidal speed-reducer; machine with stable starting, enough horsepower, long service life and low noise.
3.Power supply is equipped with thermal protector, also with automatic timing device can indicate 0 and 999 minutes.
Specifications of Industrial Plastic Mixer,Dry Powder Horizontal Ribbon Mixer, Horizontal Mixing Machine
Model
power
capacity
Volume
Voltage
Rotating speed
Outline dimension
Motor
kg
(M3)
(V)
r/min
(L*W*H)(MM)
ZHQC-100
2.2 KW
100 KG
0.35
380(V)
20r/min
1500*760*1400
ZHQC-200
3 KW
200 KG
0.45
380(V)
20r/min
2000*750*1450
ZHQC-300
4 KW
300 KG
0.72
380(V)
20r/min
2000*1100*1800
ZHQC-500
5.5 KW
500 KG
1.1
380(V)
20r/min
2500*1100*1800
ZHQC-1000
11 KW
1000 KG
2.2
380(V)
18r/min
2950*1300*2100
ZHQC-1500
15 KW
1500 KG
3.2
380(V)
18r/min
3020*1400*2200
ZHQC-2000
20 KW
2000 KG
4.2
380(V)
15r/min
3450*1500*2400
ZHQC-3000
30 KW
3000 KG
6.2
380(V)
15r/min
3780*1910*2700
