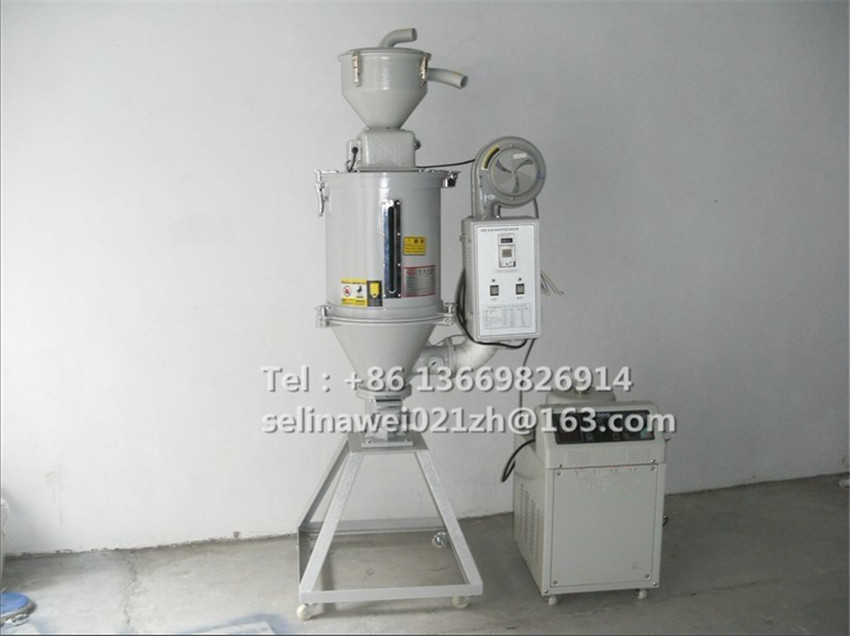

plastic hopper dryer
-
Usage of plastic hopper dryer

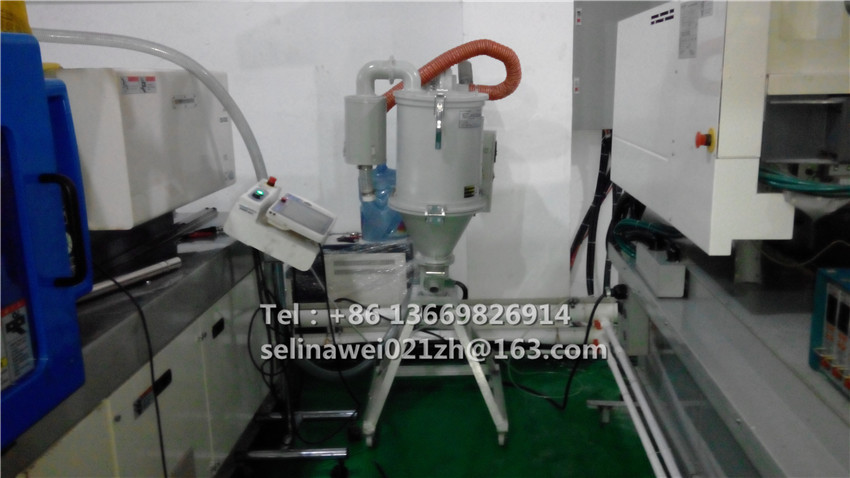

Standard hopper dryer is the most effective and economical equipment in drying plastic raw materials. It is widely used to dry any plastic material , such as drying raw material getting wet by packaging, shipping or recycling process. The barrel is made of stainless steel. This machine can be directly supported to injection molding machine, extrusion machine, granulating machine etc. ,which is quickly, convenient and space saving . There are 11 models in this series, and hopper capacity range from 25 kg to 1000 kg.
Features of plastic hopper dryer
¨1. High performance hot air diffusion device, keep uniform drying temperature, increase working efficiency.
¨2. Unique hot air tube bending type design, preventing burning caused by dust accumulation at the bottom of the electric.
¨3. All parts in touch with raw materials are made of stainless- steel. Precision die-casting aluminum shell make the machine has smooth surface and good heat preservation performance.¨
4.The proportional deviation indicator to control temperature accurately.
¨5. Installed with double over temperature protection device, can reduce accident caused by mechanical failure or man-made accident.
Model
Capacity(kg)
Heating(kw)
Blower(w)
Power(v)
Dimensions(cm)
Base size(cm)
Net weight()kg
ZHDB-12E
12
1.8
50
220/3Φ
64×44×76
11×11×Φ4
22
ZHDB-25E
25
3.5
122
220/3Φ
76×50×104
16×16×Φ6.2
34
ZHDB-50E
50
4.5
157
220/3Φ
87×54×121
16×16×Φ7
45
ZHDB-75E
75
6.5
227
380/3Φ
94×60×131
16×16×Φ7
56
ZHDB-100E
100
6.5
246
380/3Φ
101×70×141
18×18×Φ8
68
ZHDB-150E
150
9
350
380/3Φ
110×74×162
20×20×Φ8.8
78
ZHDB-200E
200
12
350
380/3Φ
118×84×176
23×23×Φ11.5
110
ZHDB-300E
300
15
750
380/3Φ
142×100×183
27.5×27.5×Φ12
152
ZHDB-400E
400
15
750
380/3Φ
148×106×202
27.5×27.5×Φ12
170
ZHDB-600E
600
20
1100
380/3Φ
158×116×240
28×28×Φ13.5
280
ZHDB-800E/
800
30
2200
380/3Φ
183*128*248
35*35×Φ13.5
460
ZHDH-1000E
1000
40
2200
380/3Φ
202*142*248
50*50×Φ13.6
680
ZHDH-1500E
1500
50
3000
380/3Φ
204*142*319
50*50×Φ13.5
750
